Wide Application Space Saving Telescopic Lifting Equipment Can Be Equipped Active Heave Compensation
Product description
OUCO crane is specially designed to lift or lower cargoes in and out of the water for repairing, storage or cleaning. The safe and controllable system will reduce the cost for maintenance significantly. The hydraulic lifting cylinder, cables and sheaves are all built in the crane mast resulting in a smooth looking crane. OUCO manufactures small service cranes in different boom lengths and depending on the crane’s application, and we offer certification by all major classification societies and a broad set of available accessories.
Main Features and advantages
1. Easily mounted directly to the deck
2. Less Installation area
3. Well rust-proof surface treatment
4. Attractive appearance design
5. Many choices in operation type--handle manually operation or remote control operation
6. The material of our hydraulic cylinder is durable steel alloy, instead of Aluminium alloy cylinder.
Technical Specification
| SWL | 2T26M |
| Working Radius | 3~26m |
| Hoisting Speed | 0~12 m/min |
| Hoisting Height | 20 m |
| Slewing Speed | ~0.8 r/min |
| Slewing Angle | 360° |
| Luffing Time | ~40s |
| Extension Time | ~25s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 7.5KW |
| Motor Speed | 1760r/min |
| Power source | AC440V, 60Hz, 3P/AC380V, 50Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement
Customer Bulid
OUCO factory specializes in crane industry for over 30 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If in need, more spare parts are available to be provided according to customers' requirements. ) |
| Warranty | 1 year ( If in need, warranty time is available to be extended according to customers' requirements.) |
Standard equipment
# 360° continuous rotation
# -10°C~+45°C working temperature
# certified A36 & S690 steel structure
# pedestal ready for mounting or weld to vessel
# precise step less speed control
# simultaneous operations of 2 or more function
# emergency for hydraulic stop device
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40°C
# certification for personal lifting
# romote control
# operator cabin with AC and heating
# ATEX package and certification.
# man riding winch
# centralized grease system
# multiple setting of load limiting system
# automatic overload protection system
# warning and working lights
# load indicator system

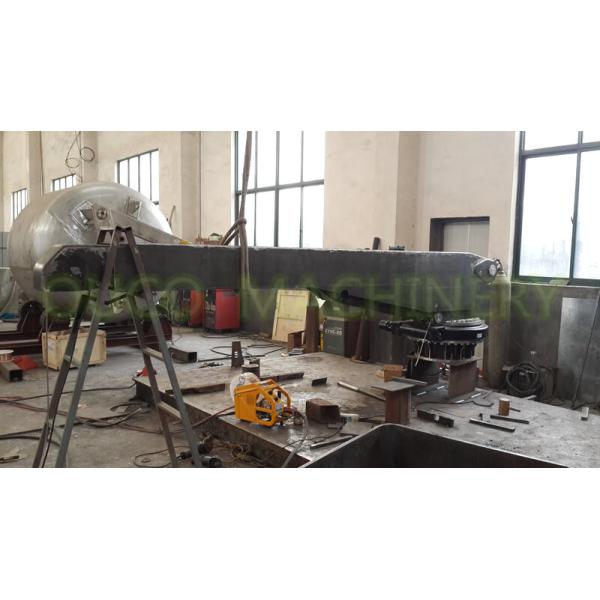

Detailed Images
Packaging & Shipping
FAQ
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have folding boom, knuckle boom, telescopic boom, fixed boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole unit.
